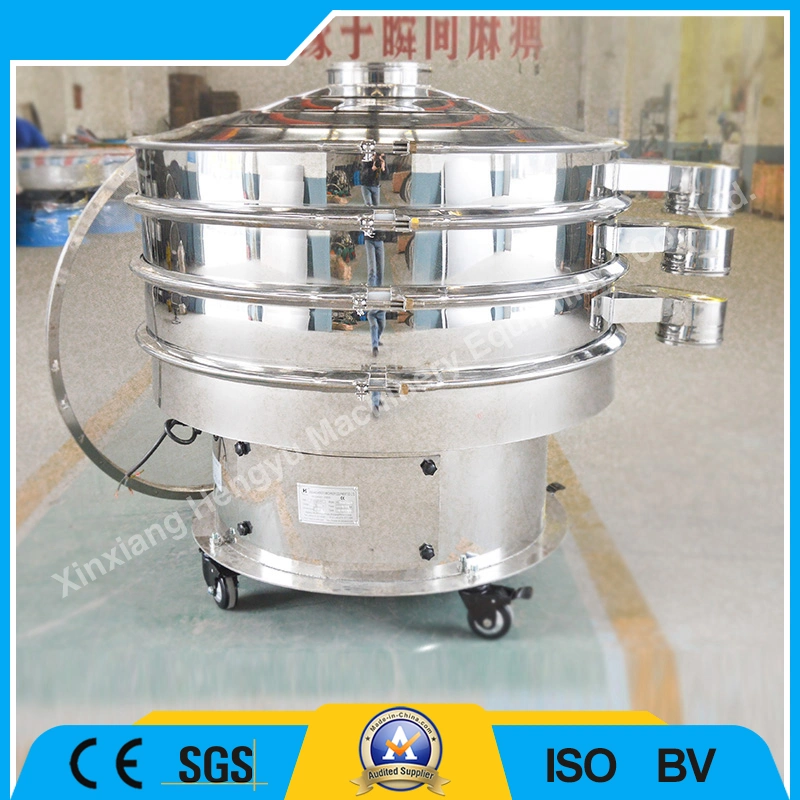

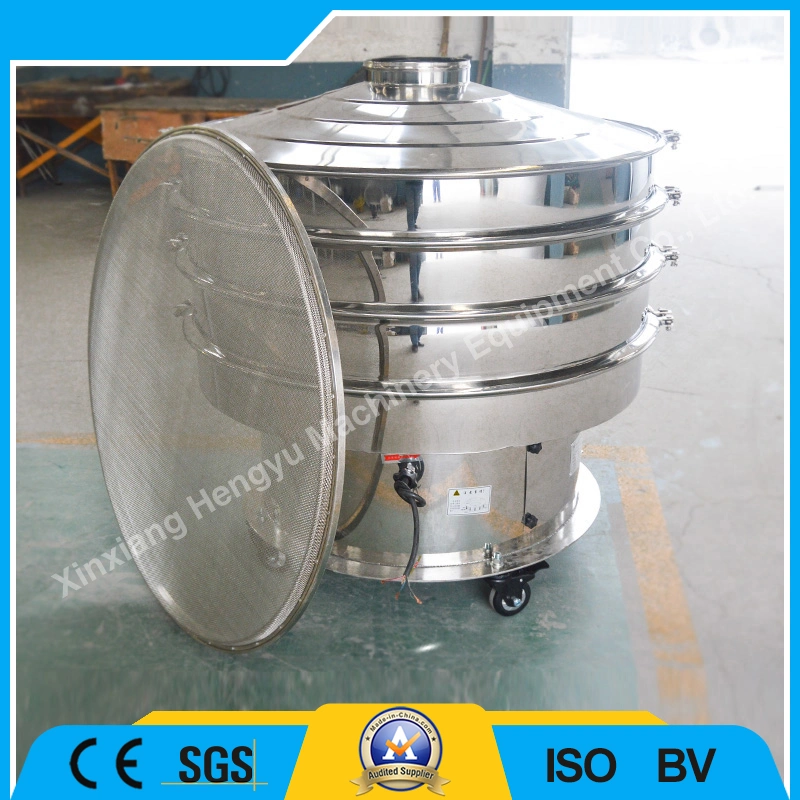

Description of round powder stainless steel vibrating screen
This stainless steel vibrating screen is portable unit, ideal for separation various types of solids from solid mixtures and gradation of products based on their particle sizes to get uniformly sized product. They are designed for screening the dry material through any mesh size as per particles size.
Manufactured also in double/triple/four decks for multiple grading sizes in the same batch in the same process.
Features of stainless steel vibrating screen:
1. Mature technology, stable structure and high performance at a good price
2. Screen cloth is durable and high quality with material of stainless steel 304
3. 1-4 layers supplied as request of your screening aim
4. All- closed design, no dust pollution
5. Automatic continuous discharge of oversize and under-size materials
Function for stainless steel vibrating screen
Classification: separation of solids into groups of liked sizes. Accurate sizing or classification of particles in two to five predetermined sizes.
Sifting and De-dusting: separating a small percentage of oversize or undersize solids from a large percentage of on-size solids.
De-watering: separating a small percentage of liquid or oversize solids from a large percentage of solids or on-size solids in a slurry.
Technical parameter
Scope of application
Stainless steel vibrating screen is widely used in many industries, such as mining, building materials, metallurgy, casting, chemical, pharmaceutical and food industry.
Matters needing attention
1. Once the machine on operation, the vibration part shall not be connected or contact with any object.
2. When feeding materials, pay attention to ensure the uniform feeding.
3. When the material through down, keeping no big impact to damage the screen.
4. Before operation and power off, there should no be any material on screen surface.
5. If there is any abnormal sound in the operation, the machine should be shutdown immediately and to check.
6. Ensure vibration motor maintenance regularly.
How to get one set of stainless steel vibrating screen? Only by telling us the following information for selection:
1. Material
2. Machine
3. Working situation
The above mentioned is our standard model sizes, we are able to design for you according to your aim, working site, production capacity and the features of your material, just feel free to contact us today, let's solve your problems together.
This stainless steel vibrating screen is portable unit, ideal for separation various types of solids from solid mixtures and gradation of products based on their particle sizes to get uniformly sized product. They are designed for screening the dry material through any mesh size as per particles size.
Manufactured also in double/triple/four decks for multiple grading sizes in the same batch in the same process.
Features of stainless steel vibrating screen:
1. Mature technology, stable structure and high performance at a good price
2. Screen cloth is durable and high quality with material of stainless steel 304
3. 1-4 layers supplied as request of your screening aim
4. All- closed design, no dust pollution
5. Automatic continuous discharge of oversize and under-size materials
Function for stainless steel vibrating screen
Classification: separation of solids into groups of liked sizes. Accurate sizing or classification of particles in two to five predetermined sizes.
Sifting and De-dusting: separating a small percentage of oversize or undersize solids from a large percentage of on-size solids.
De-watering: separating a small percentage of liquid or oversize solids from a large percentage of solids or on-size solids in a slurry.
Technical parameter
| Model | Power | Effective screening diameter | Dimension (mm) | Layers |
| BZ400 | 0.18kw | 360mm | 580*580*560 | 1 |
| 580*580*670 | 2 | |||
| 580*580*780 | 3 | |||
| BZ600 | 0.25-0.55kw | 560mm | 800*800*750 | 1 |
| 800*800*890 | 2 | |||
| 800*800*1030 | 3 | |||
| BZ800 | 0.55-0.75kw | 760mm | 900*900*750 | 1 |
| 900*900*890 | 2 | |||
| 900*900*1030 | 3 | |||
| BZ1000 | 0.75-1.5kw | 930mm | 1160*1160*810 | 1 |
| 1160*1160*950 | 2 | |||
| 1160*1160*1090 | 3 | |||
| BZ1200 | 1.1-1.75kw | 1130mm | 1360*1360*885 | 1 |
| 1360*1360*1050 | 2 | |||
| 1360*1360*1275 | 3 | |||
| BZ1500 | 1.5-2.2kw | 1430mm | 1850*1850*990 | 1 |
| 1850*1850*1185 | 2 | |||
| 1850*1850*1380 | 3 | |||
| BZ1800 | 2.2-3.0kw | 1730mm | 2200*2200*1050 | 1 |
| 2200*2200*1250 | 2 | |||
| 2200*2200*1450 | 3 |
Scope of application
Stainless steel vibrating screen is widely used in many industries, such as mining, building materials, metallurgy, casting, chemical, pharmaceutical and food industry.
Matters needing attention
1. Once the machine on operation, the vibration part shall not be connected or contact with any object.
2. When feeding materials, pay attention to ensure the uniform feeding.
3. When the material through down, keeping no big impact to damage the screen.
4. Before operation and power off, there should no be any material on screen surface.
5. If there is any abnormal sound in the operation, the machine should be shutdown immediately and to check.
6. Ensure vibration motor maintenance regularly.
How to get one set of stainless steel vibrating screen? Only by telling us the following information for selection:
1. Material
| Name of material |
| Characteristic of material, such as water content, size of material, specific gravity |
| Capacity per hour you asked |
| How many layers you asked |
| Sieve mesh for each layer |
| Voltage, Hertz, Phase |
The above mentioned is our standard model sizes, we are able to design for you according to your aim, working site, production capacity and the features of your material, just feel free to contact us today, let's solve your problems together.
