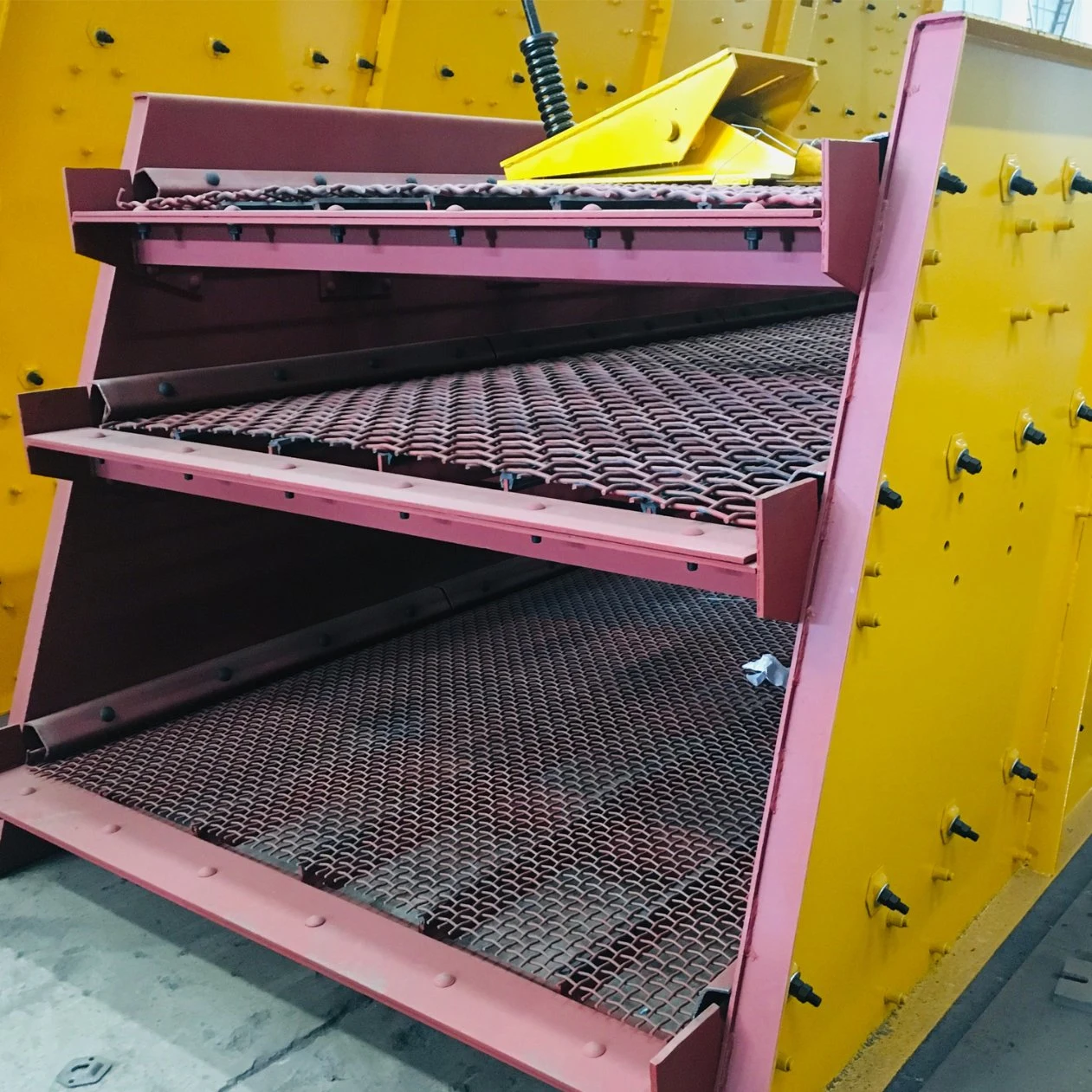

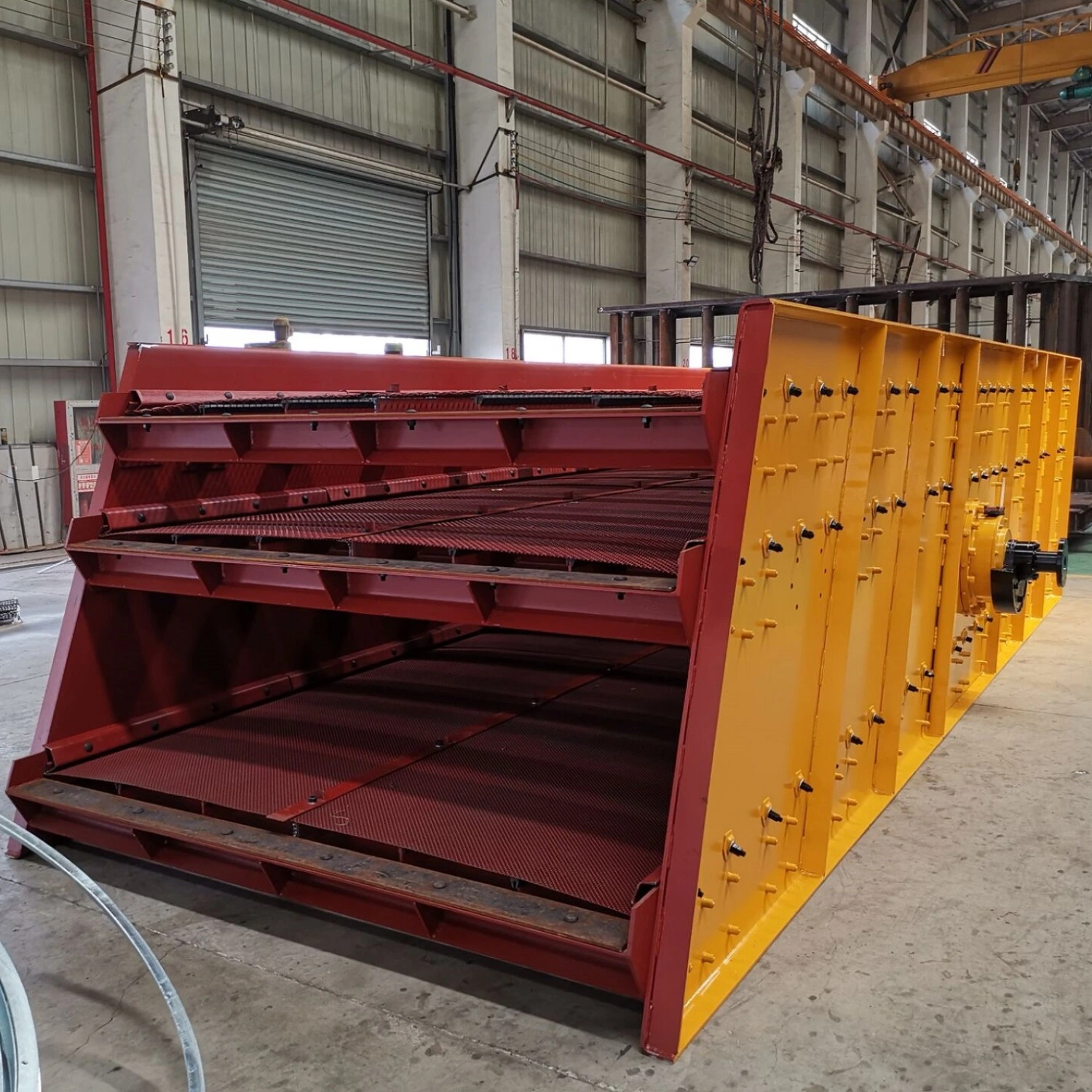

Multi Deck Circular Vibrating Screen for Sand Making Plant
The YA Series Heavy Duty Vibrating Screen is a type of heavy duty processing equipment. It is an indispensable classifying device in such fields as ore beneficiation, aggregate production, disposal of building wastes or solid wastes and coal dressing.
Feeding Size: 0-200mm
Output Size: Customized
Crushing Capacity: 0-300t/H
Crushing Type: Sand Screening, Aggregate Screening, Ore Screening, Etc.
Features Of Heavy Duty Vibrating Screen
1.Long Flowing Line And Many Screening Specifications;
2.Strong Violent Vibrating Force;
3.High Screening Efficiency And Low Vibrating Noise;
4.Firm And Durable Structure, Convenient Maintenance And Safe Operation;
Specification Of Heavy Duty Vibrating Screen
Specification Of Heavy Duty Vibrating Screen
| YA Vibrating Screen | |||||||||
| Model | Screen Deck | Screen Size(mm) | Screen Specifications(mm) | Max. Feed Edge(mm) | Processing Capacity(t/h) | Double Amplitude(mm) | Motor Power(kw) | Weight(t) | Overall Dimension(L×W×H)(mm) |
| 2YA1230 | 2 | 3-50 | 1220×3050 | 200 | 10-90 | 8 | 5.5 | 2.34 | 3502×2127×1868 |
| 3YA1230 | 3 | 3-80 | 1220×3050 | 200 | 30-90 | 8 | 7.5 | 3.05 | 3538×2168×2245 |
| 2YA1542 | 2 | 5-50 | 1500×4200 | 200 | 50-180 | 8 | 15 | 5.33 | 5081×2573×2660 |
| 2YA1548 | 2 | 5-50 | 1500×4800 | 200 | 50-190 | 8 | 15 | 5.5 | 5745×2573×3367 |
| 3YA1548 | 3 | 5-50 | 1500×4800 | 200 | 50-200 | 8 | 15 | 6.08 | 5909×2573×3367 |
| 4YA1548 | 4 | 5-50 | 1500×4800 | 200 | 50-200 | 8 | 18.5 | 6.75 | 5909×2573×3845 |
| 3YA1848 | 3 | 5-80 | 1800×4800 | 200 | 50-250 | 8 | 18.5 | 6.93 | 6072×2970×3366 |
| 4YA1848 | 4 | 5-80 | 1800×4800 | 200 | 50-260 | 8 | 22 | 7.1 | 6072×2970×3845 |
| 2YA1860 | 2 | 5-80 | 1800×6000 | 200 | 50-280 | 8 | 18.5 | 7.2 | 6965×2971×3276 |
| 3YA1860 | 3 | 5-80 | 1800×6000 | 200 | 50-300 | 8 | 18.5 | 7.7 | 7129×2971×3744 |
The YA Series Vibrating Screen mainly consists of screen box, screen net, vibrator, damping spring device, chassis and other components. The side plates are made of high-quality steel plates. They are connected with the beam and the exciter base by high-strength bolts or ring groove rivets. The cylinder-type eccentric shaft exciter and the eccentric block are used to adjust the amplitude. The vibrator is installed on a side plate of the screen box. Driven by the motor, the eccentric block of the vibrator would rotate at a high speed under the motivation of triangular belt. High-speed rotation further exerts strong centrifugal inertia force to stimulate the screen box move in a circular motion within specific amplitude. During operation, materials on the inclined screen surface are subjected to the impulse transmitted from the screen box so that they are put in a continuous throwing motion. When materials fall onto the screen surface, particles smaller than the screen size are sieved out to achieve classification.
